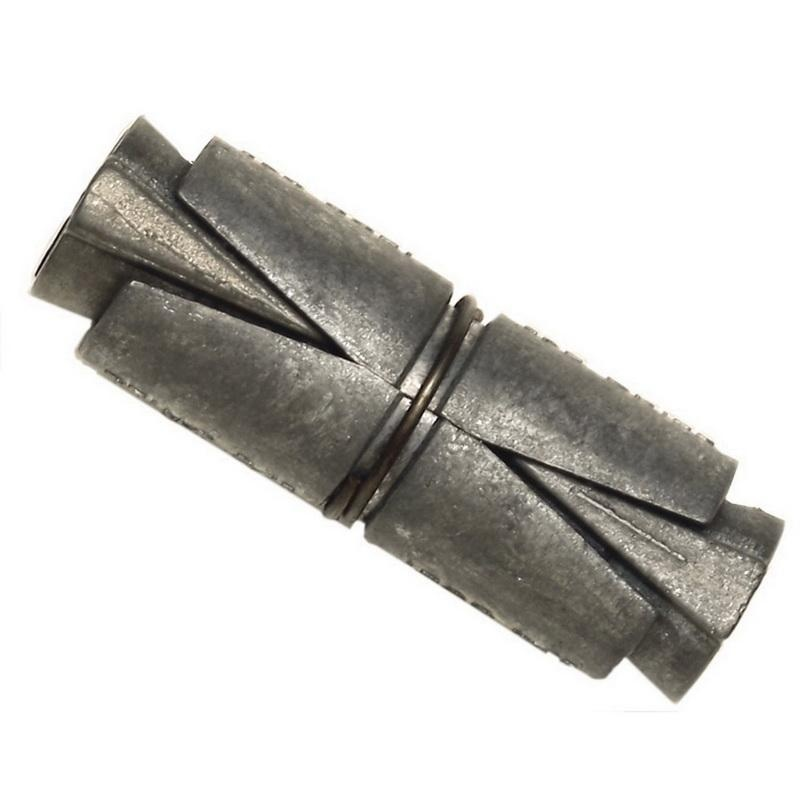

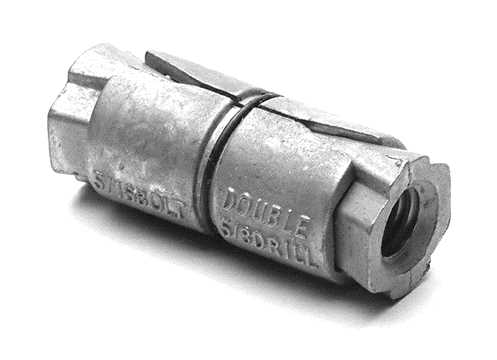

A Double Expansion Anchor, also known as a Dual Expansion Anchor or Dual Expansion Concrete Anchor, is a specialized type of concrete fastener that utilizes a dual-stage expansion mechanism to create a secure and load-bearing attachment point in concrete or masonry.

Key features and characteristics of Double Expansion Anchors:

1. Design:

• Double Expansion Anchors feature a two-part design, consisting of an inner bolt or threaded stud and an outer expansion sleeve or shell.

• The outer expansion sleeve is typically made of galvanized steel or other corrosion-resistant metal, while the inner bolt is often made of steel or stainless steel.

2. Installation:

• To install a Double Expansion Anchor, a hole is first drilled into the concrete or masonry surface using a masonry drill bit.

• The anchor is then inserted into the hole, and the inner bolt is tightened, causing the outer expansion sleeve to expand in two stages:

1. The initial expansion of the sleeve grips the sides of the drilled hole.

2. Further tightening of the inner bolt causes a secondary expansion, further securing the anchor in place.

3. Dual Expansion Mechanism:

• The dual-stage expansion mechanism of a Double Expansion Anchor provides a highly secure and reliable attachment point, as the anchor is able to distribute the load evenly across the base material.

• The two-phase expansion process helps to compensate for variations in concrete or masonry density and creates a strong, form-fitting connection.

4. Load Capacity:

• Double Expansion Anchors are designed for medium to heavy-duty applications, with typical load capacities ranging from around 500 pounds (227 kg) to 2,000 pounds (907 kg) or more, depending on the anchor size and installation conditions.

5. Applications:

• Securing heavy-duty equipment, machinery, or structural supports to concrete floors or walls

• Mounting large or bulky items, such as overhead storage racks or shelving

• Attaching safety equipment, guardrails, or other industrial/commercial fixtures

• Double Expansion Anchors are commonly used for a wide range of applications, including:

6. Advantages:

• Highly secure and load-bearing attachment in concrete or masonry

• Dual-stage expansion mechanism provides superior grip and load distribution

• Corrosion-resistant construction for long-term durability

• Suitable for medium to heavy-duty applications

• Reusable and can be removed and reinstalled as needed

Double Expansion Anchors offer a robust and reliable fastening solution for a variety of heavy-duty applications, making them a popular choice in industrial, commercial, and construction settings where a secure and load-bearing attachment is required.
